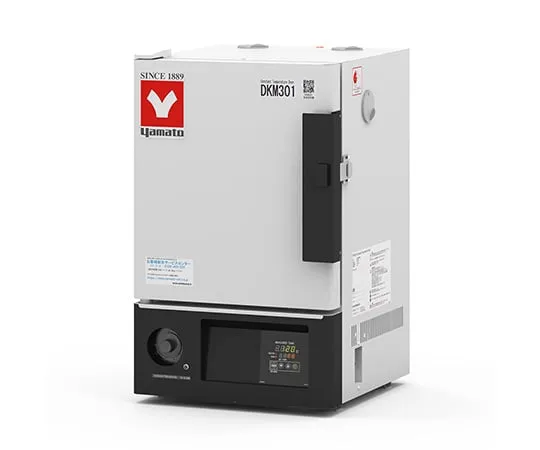

• Type: forced air circulation
• [Performance]
• Temperature Control Range: Room Temperature +10~260°C
• Temperature Fluctuation (JIS C 60068-3-5:2020) ±0.8°C (at260°C)
• Temperature Gradient (JIS C 60068-3-5:2020): 9°C (at260°C)
• Temperature Rise Time (Reference): Approximately 50 minutes (Room Temperature ~260°C)
• Temperature Rise Rate (JIS C 60068-3-5:2020): 4.4°C/min
• [Composition]
• Interior: Stainless Steel Plate
• Exterior: Chromium-Free Electrogalvanized Steel Plate Baked Coating
• Insulation: Glass wool
• Heater Material: SUS Pipe Heater
• Heater Capacity: 0.8 kW
• Blower Fan: 1 Sirocco Fan
• Cable hole: Inner diameter 33 mm (1 right side)
• Vent: Inner Diameter 33 mm (2 Ceiling Surfaces)
• [Controller]
• Temperature Control System: P.I.D. Control ▼
• Temperature setting method: Dedicated operation menu key and ▲ ▼ Digital setting system by key ▼
• Temperature Display System: Measured Temperature Display/Green 4-digit LED Digital Display, Set Temperature Display/Red 4-digit LED Digital Display ▼
• Timer: 1 minute ~99 hours 59 minutes and 100~199 hours 50 minutes (with timer wait function)
• Internal volume: 27 L
• Shelf Boards: 15 kg/Board, Total Load Capacity 30 kg, 6 Racks
• Inner Dimensions (Width x Depth x Height): 300 x 300 x 300 mm
• External Dimensions (Width x Depth x Height): 410 x 450 x 670 mm
• Power Capacity: 100 VAC 8.5 A, Breaker Capacity and Power Supply Facility Capacity/15 A, Power Cord Length/Outside Approximately 2 m
• Weight: 32 kg
• Door Packing Material: Silicone Rubber
