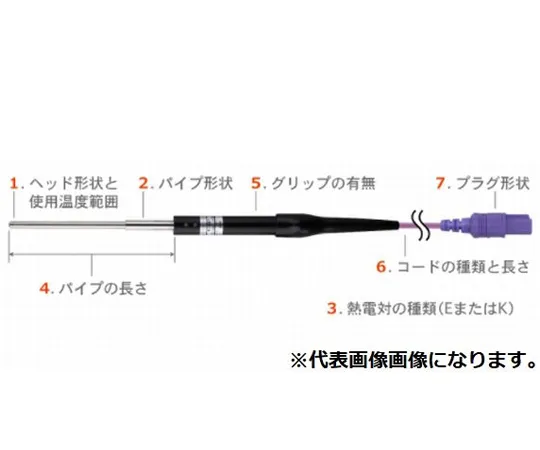

65-3541-80 Temperature Sensor for Micro Surface CS Series, Tip □2 x 10 mm/-50~400°C, Pipe Shape: 90°K Type 50 mm CS-33K-005-1-TC1-ASP
产品描述
产品型号: 65-3541-80产品品牌: ANRITSU METER CO., LTD. 功能 The CS […]
联系我们
产品详细内容
产品型号: 65-3541-80
产品品牌: ANRITSU METER CO., LTD.
功能
- The CS series is a temperature sensor for micro surfaces with a small temperature measuring section.
- It can measure the surface temperature of not only electronic substrate but also any object.
规格
- Head Shape/Operating Temperature Range: Tip □2 x 10 mm/-50~400°C
- Pipe Shape: 90°/CS-33, the longitudinal direction of the contact plate is parallel to the pipe.
- Thermocouple Type: K Type
- Length (mm): 50
- With grip: Yes
- Code Type: Grip/Standard Code
- Cord length (m): 1
- Plug Shape: Standard Plug (Thermocouple Homogeneous Metal)
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测
1-2047-11-56 ［Discontinued］Top Plate Balance 1520g with English Calibration Certificate PL1502E
型号: 1-2047-11-56
品牌: Mettler-Toledo International Inc.
理化检测

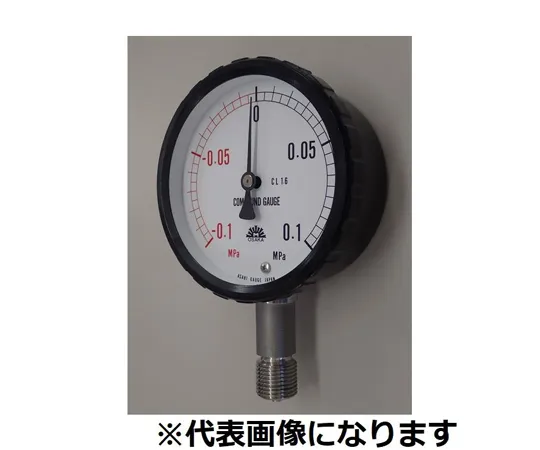

65-3505-31 Sealed Coupled Meter Type A Vibration-Resistant Pressure Range (MPA): -0.1~0.1 325-A850X0.1-0.1MPA-MV
