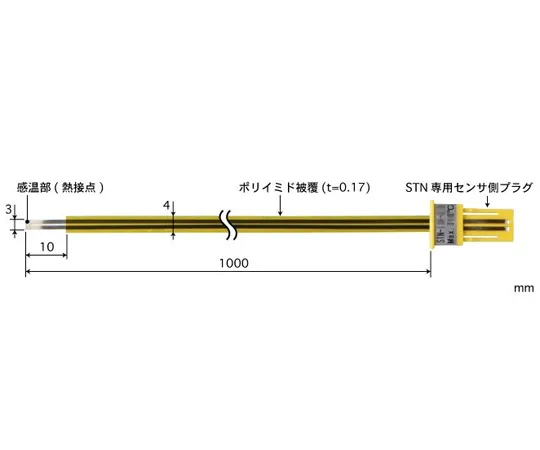

65-3531-24 Tape Type Multi-Purpose Temperature Sensor Replacement Type STN Series 5 Pieces/1 Set -50~350°C 1000 mm E Type STN-23E-100
产品描述
产品型号: 65-3531-24产品品牌: ANRITSU METER CO., LTD. 功能 The ST […]
联系我们
产品详细内容
产品型号: 65-3531-24
产品品牌: ANRITSU METER CO., LTD.
功能
- The STN series is a multipurpose temperature sensor with an extremely thin flexible tape shape and interchangeable tape part.
- [Application] Measurement and experiment of heat generation of LED
规格
- Operating temperature range (°C): Tape length ≤ 150 mm -50~400°C, Tape length > 150 mm -50~350°C
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- tape width: standard type
- Tip Shape: Flat
- Coating Shape: Polyimide Coating/Tip Exposed
- Thermocouple Type: E Type
- Tape length (mm): 1000
