产品详细内容

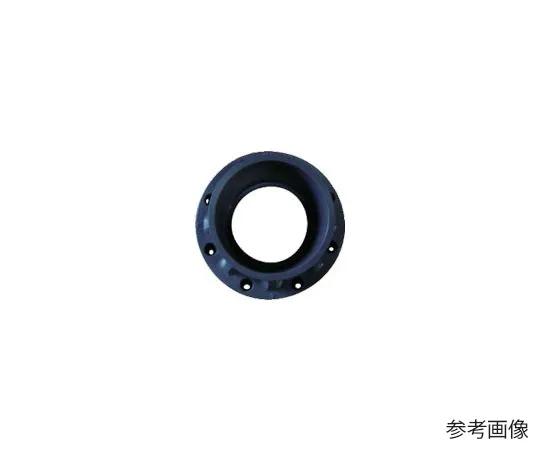

产品型号: 67-2353-14
产品品牌: SEKISUI
功能
- PVC flange with excellent corrosion resistance. Can be used safely without being corroded by acidic or alkaline chemicals or seawater.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
规格
- Nominal Diameter A: 150
- Nominal Diameter B: 6
- Inner diameter (mm): 146
- Outer Diameter (mm): 280
- Thickness (mm): 26
- Number of Bolt Holes (pcs): 8
- Bolt Hole Diameter (mm): 23
- Working pressure (K): 10
- Bolt Hole Center Diameter (mm): 240
- Maximum Operating Temperature: 60°C
- Size: 150 A
- Material: Rigid Vinyl Chloride (PVC)
- PVC Pipe Nominal Diameter: 150
- Number of holes (pcs): 8
- Nominal Diameter: 6B
- Maximum Allowable Pressure: 1.0 MPa (at20°C)
- JIS10K Specification
- Flange dimensions conform to JIS10K (JISB2210).
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful when using the adhesive.
- Note:Please use standard construction method.
- Note:Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
- Note:Pay attention to the tightening torque.
- Country of Origin: Taiwan
- Securities Code: 850-5725
