产品详细内容
产品型号: 63-4674-20
产品品牌: KOA
功能
- UL1676 c-UL (CAS-C22.2 No. 1-M94) (File No. E159326) (RK only) MF1/4, MFS1/4, MFS1/2 are AEC-Q200 certified
- Metal film resistor 0.5 W (1%), MFS1/2 series
- KOA MF series is a high-precision through-hole type resistor.
- This series offers a variety of resistance values.
- The MF through-hole resistor with lead-free termination is ideal for use in automatic mounting machines.
- The MFS type has twice the power rating of the standard body type.
- The MF1/4, MFS1/4, and MFS1/2 types are AEC-Q200 certified and suitable for automotive applications.
规格
- 数量:1袋 (50个)
- 电阻:49.9Ω
- 额定功率:0.5 W
- 容忍度:±1%
- 技术:金属涂层
- 系列:MFS
- 外壳样式:陶瓷
- 温度系数:±50 ppm/deg。
- 样式:轴向
- 尺寸:2.3 (迪亚。)x 7.1 mm
- 长度:7.1 mm
- 直径:2.3 mm
- 低温度系数:-50 ppm/deg。
- RoHS合规性状态:合规性
- 证券代码:124 -2836
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

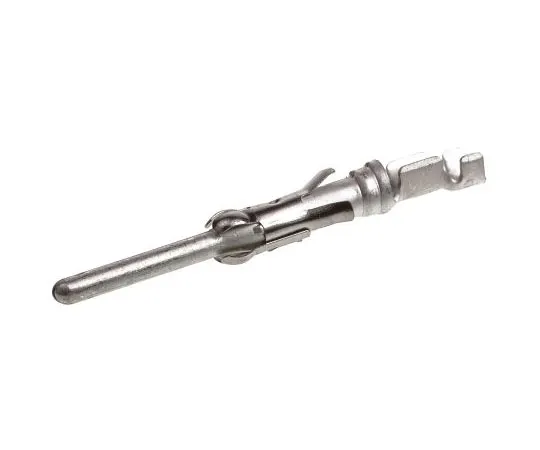

63-7382-34 TE连接型III+系列，尺寸16 13A公圈环形连接器触点，导线尺寸24→20 AWG 163086-1
