产品详细内容

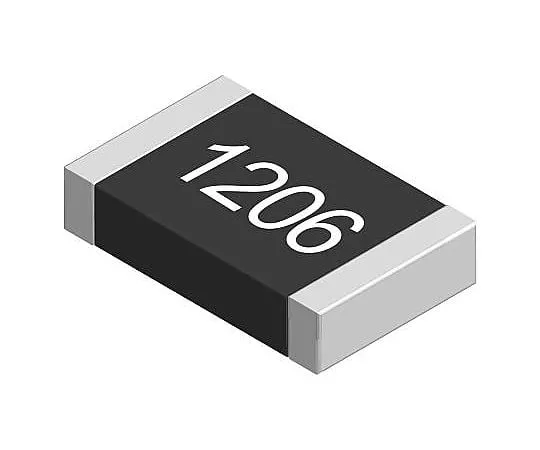

产品型号: 63-4669-31
产品品牌: KOA
功能
- AEC-Q200 Certified 1206 Thick Chip Resistor, RK73H Series 1% KOA's RK73H Series Precision Resistor is a compact and lightweight solution.
- This precision resistor with a three-layer electrode structure has excellent reliability and high stability.
- The use of metal glaze thick film provides excellent weather and heat resistance.
- This precision resistor is ideal for both flow and reflow soldering and is used in automatic mounting machines.
- All RK73H chip resistors except the 01005 case size are AEC-Q200 certified and suitable for automotive applications.
- Small, lightweight, stable and reliable lead-free terminal jumper resistor is also included.
规格
- 数量:1袋 (100个)
- 电阻:220Ω
- 技术:厚膜
- 包装/外壳:1206
- 容忍度:±1%
- 额定功率:0.25 W
- 温度系数:±100 ppm/K
- 尺寸:3.2 x 1.6 x 0.6 mm
- 高度:0.6 mm
- 系列:RK 73 H
- 工作温度 小值:-55°C
- 工作温度mAx:+155°C
- 外壳样式:模具
- RoHS合规性状态:合规性
- 证券代码:123 -4356
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备

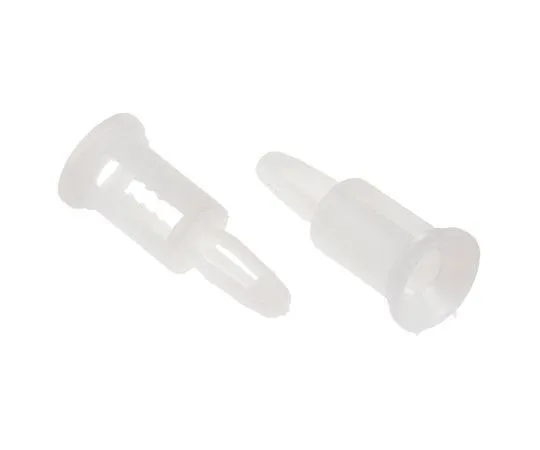

63-7448-17 SFCBS M412M01, 12mm高尼龙钉固定空间用于4mm PCB孔和M4螺纹尺寸 SFCBS M4 12M 01
