产品详细内容

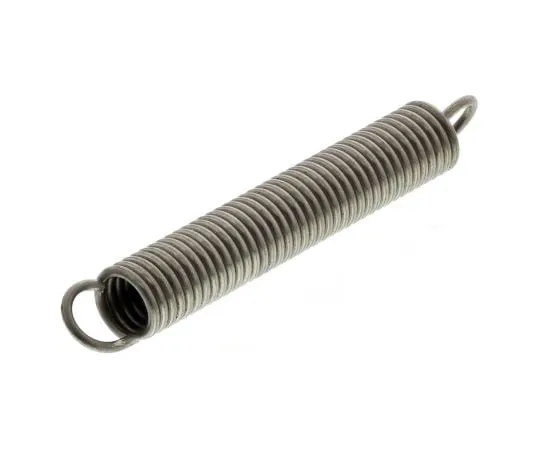

产品型号: 63-4655-16
产品品牌: RS PRO
功能
- All right-handed helical spring dimensions of materials conforming to DIN 17224 No
- 1 4310 or BS2056 EN58A conform to DIN2097 (grade 2)
- Stainless steel tensile springs
- Tensile springs are mounted in a shrunk state using components at both ends of the spring. Pull both ends of the tension spring to restore it. The spring tension can match the load requirements of the intended application.
- Features and Advantages: Energy absorption and storage Resistance to tensile force Various sizes of winding spring resisting elongation Use: Interior and exterior garage door assembly Vise plier Trampoline cleaning equipment Agricultural machinery
规格
- 材质:不锈钢
- 自由长度:34.5mm
- 大加长长度:59.50毫米
- 外径:5mm
- 钢丝直径:0.7毫米
- 初始张力:18.8N
- 弹簧速率:0.64N/mm
- 代码号:821-526
相关产品推荐
您可能还对以下产品感兴趣

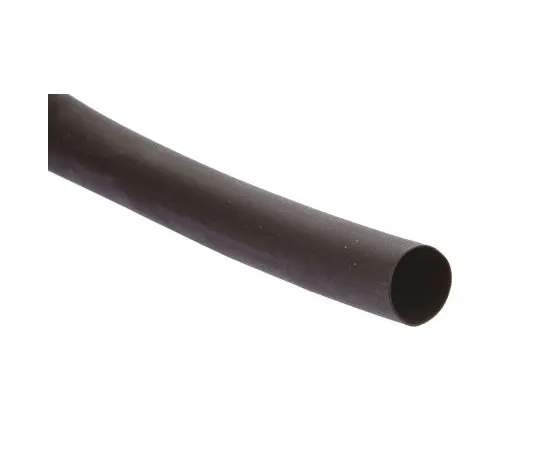

63-7424-10 托马斯和贝茨黑色热收缩管套件9.5mm袖迪亚。长度:6.5m,收缩Kon系列2:1比例 HSB375-0
