产品详细内容

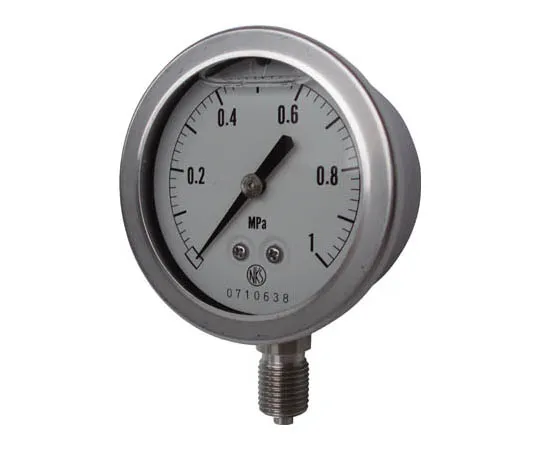

产品型号: 62-3399-31
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- Excellent corrosion and atmosphere resistance due to stainless steel wetted part and case material.
- This instrument is a pressure gauge dedicated to vibration, which suppresses vibration of the moving part by immersing the internal mechanism in the filling fluid, and also prevents wear of the internal link mechanism to facilitate maintenance.
规格
- Number of Pieces: 1
- Pressure range (MPa): 0.0~10.00
- Minimum Scale (MPa): 0.500
- Accuracy: ±1.5% FS
- Case Shape: A
- Size (mm): 60
- Connection Size: G1/4B
- Material/Finish: Bourdon Tube: Stainless Steel (SUS316), Stock: Stainless Steel (SUS316)
- Securities Code: 434-9652
相关产品推荐
您可能还对以下产品感兴趣
理化检测

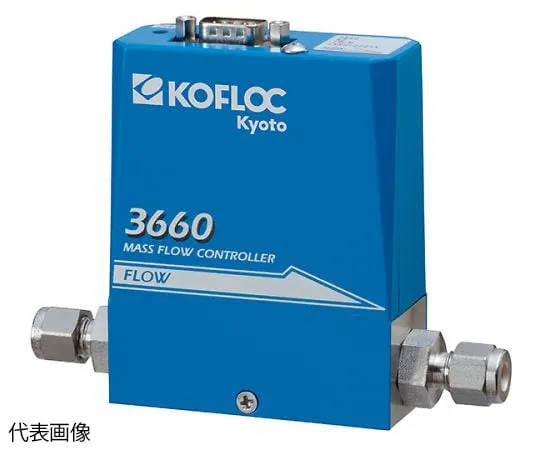

64-4272-97 Standard Mass Flow Controller MODEL 3660 SERIES 3660-RC14-AIR-10SCCM-20
