产品详细内容
产品型号: 63-4641-66
产品品牌: RS PRO
功能

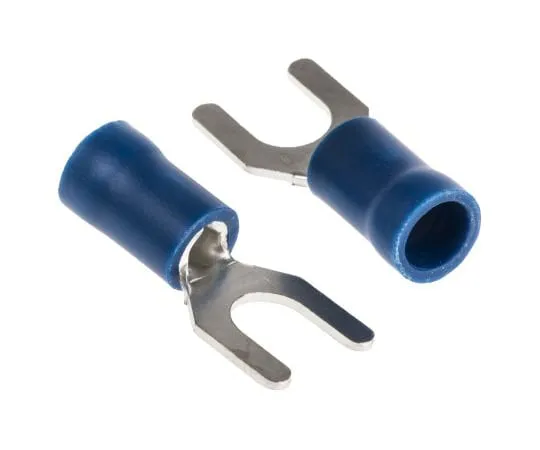

- RS Pro Insulated Spade Connector
- RS Pro insulated crimped spade terminal products are made of tin plated copper. This spade connector is insulated by vinyl or nylon and can be easily inserted by flaring. The insulation is colored according to the wire size used. All models boast high reliability and excellent quality.
- Features & Benefits: Available in a variety of metric sizes • Available in red, yellow, and blue • Available in a variety of wire sizes
规格
- 绝缘:绝缘
- 宽度:9.5mm
- 小线材尺寸mm2:1.5mm2
- 大线材尺寸mm2:2.5mm2
- 小导线尺寸AWG:16 AWG
- 大导线尺寸AWG:14 AWG
- 存根大小:M5
- 颜色:蓝色
- 接触电镀:锡
- 接触材料:铜
- 厚度:0.8毫米
- 代码号:534-610
相关产品推荐
您可能还对以下产品感兴趣

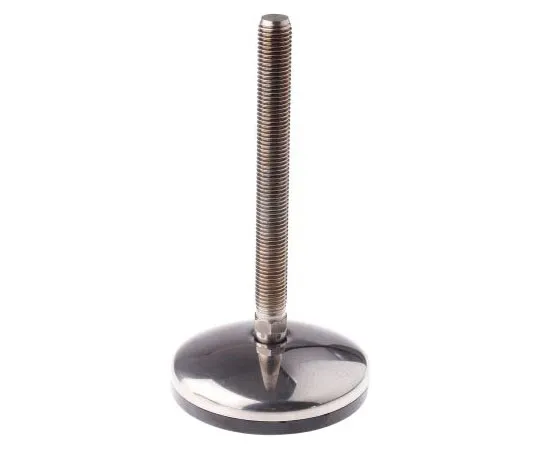

63-7541-50 Nu-Tech工程不锈钢可调脚A105/024 100mm模具。188mm 1000kg静载容量,150 mmM16 A105/024
型号: 63-7541-50
品牌: Nu-Tech Engineering

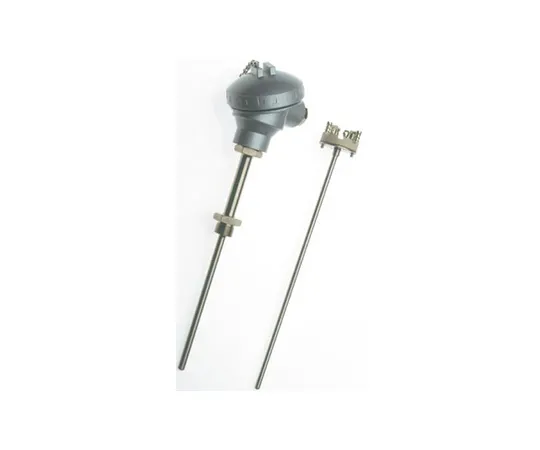

63-4798-63 RS PRO 4线PT100传感器, -100°C min+450°C max, 500 mm探针长度x 8 mm探针直径 455-3996
