产品详细内容

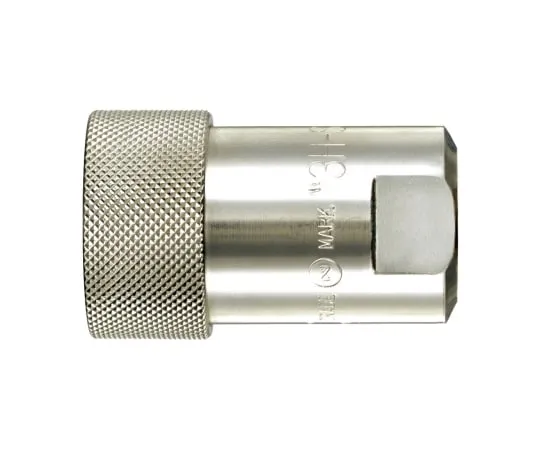

产品型号: 65-9568-41
产品品牌: NITTO KOHKI CO., LTD.
功能
- For high pressure.
- The body material uses special steel that is resistant to vibration and impact.
- Suitable for hydraulic equipment with low pressure loss.
- The Coupler body uses special steel that has undergone heat treatment. It is particularly effective in shock resistance under impulse pressure.
- Equipped with an automatic opening/closing valve to prevent fluid from flowing out during separation.
- Efficiency of mounting to hydraulic equipment, etc.
规格
- Counterpart Mounting Screw Size: R1/2
- Mass (g): 485
- L(mm):72
- ΦD(mm):43
- H (mm): two sides 35
- T:Rc1/2
- Valve Structure: Double Road Opening/Closing Type
- Applicable fluid: hydraulic fluid
- Body Material: Special Steel (Nickel Plating)
- Maximum Working Pressure (MPa{kgf/cm2}): 20.6{210}
- Pressure Capacity (MPa{kgf/cm2}): 31.0{316}
- Seal Material: Fluororubber
- display symbols: FKM
- Operating Temperature Range (°C): -20 to +180
- Remarks: Semi-standard product
- Recommended maximum tightening torque (N · m{kgf · cm}): 90{918}
- Type: Socket
- Specifications: Taper Thread
