产品详细内容

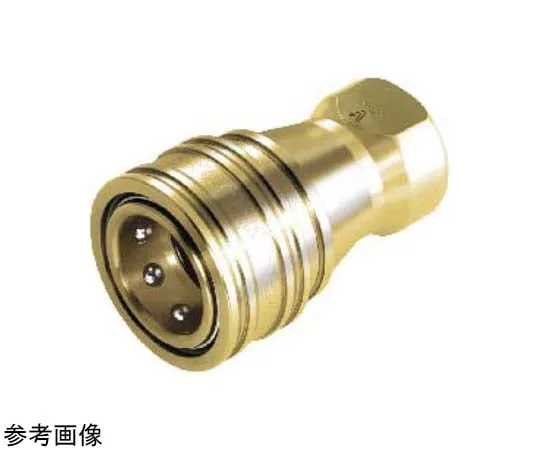

产品型号: 65-9010-83
产品品牌: NITTO KOHKI CO., LTD.
功能
- For inert gas and vacuum.
- The socket plug uses an automatic opening and closing valve with an excellent sealing structure. Demonstrates power in vacuum applications.
- Both the socket and plug are equipped with automatic opening and closing valves for easy fluid handling. Also, it can be used for a wide range of vacuum applications up to 1.3 x 10-1 Pa{1 x 10-3mmHg} even during separation.
规格
- Counterpart Mounting Screw Size: R3/4
- Body Material: Brass
- Mass (g): 680
- L(mm):88
- ΦD(mm):55
- H (mm): two sides 35
- T:Rc3/4
- Valve Structure: Double Road Opening/Closing Type
- Applicable fluids: inert gas vacuum, gas, air, water
- Maximum Working Pressure (MPa{kgf/cm2}): 3.0{31}
- Pressure Capacity (MPa{kgf/cm2}): 4.5{46}
- Seal Material: Chloroprene Rubber
- display symbols: CR
- Operating Temperature Range (°C): -20 to +80
- Remarks: Standard Material
- Recommended maximum tightening torque (N · m{kgf · cm}): 50{510}
- Suitable for vacuum applications: 1.3 x 10 to the power of -1 Pa (1 x 10 to the power of -3 mmHg) can be used
- Type: Socket
