产品详细内容

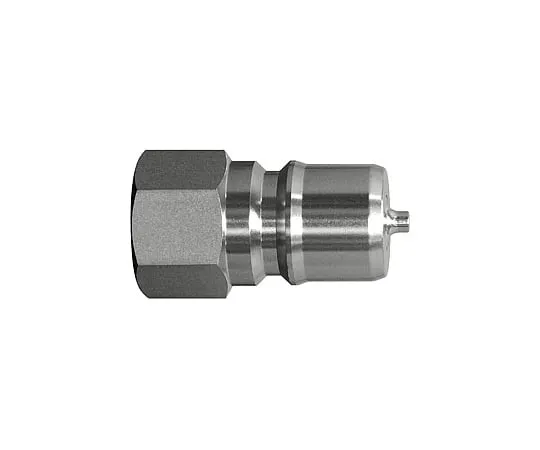

产品型号: 65-9010-62
产品品牌: NITTO KOHKI CO., LTD.
功能
- For high-purity chemicals.
- Uses stainless steel (SUS304) for the body and spring. In addition, electrolytic polishing is applied to enhance corrosion resistance.
- General-purpose type that uses rubber as the sealing material.
- Sealant can be selected according to fluid and application. It flexibly supports semiconductor manufacturing processes.
- No grease specification, so no grease is applied to the sealant.
- All parts are cleaned and assembled, inspected and packaged in a clean room.
- The plug is equipped with a cap as standard.
规格
- Container Capacity (L): For 100~200
- Mass (g): 60
- L(mm):40
- C(mm):25
- H (mm): Hex 21
- T:Rc3/8
- Valve Structure: Double Road Opening/Closing Type
- Applicable fluids: High purity chemicals, water, various industrial gases, air
- Body Material: Stainless Steel (SUS304, Electropolishing (SPE))
- Maximum Working Pressure (MPa{kgf/cm2}): 0.2{2}
- Pressure Capacity (MPa{kgf/cm2}): 0.3{3}
- Seal Material: Perflo
- Display symbol: P
- Operating Temperature Range (°C): 0 to +50
- Remarks: Standard Material
- Recommended maximum tightening torque (N · m{kgf · cm}): 22{224}
- Type: Plug
