产品详细内容

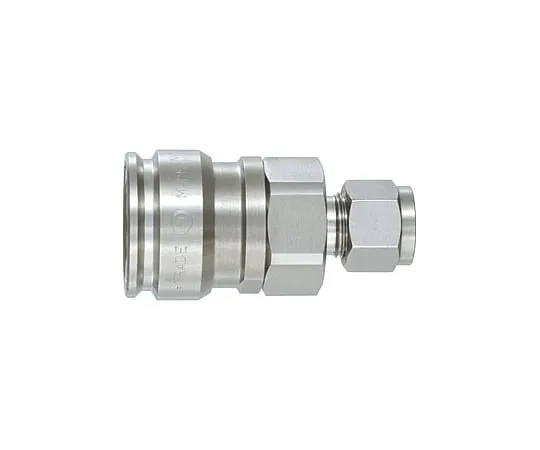

产品型号: 65-9010-50
产品品牌: NITTO KOHKI CO., LTD.
功能
- For low pressure.
- High flow Coupler and wedge type pipe joint are integrated. Achieves efficiency of piping work.
- Easy connection with stainless steel pipes.
- Can be connected to various tubes just by inserting the insert into the tube.
规格
- Other Pipe Size (mm): Φ9.53
- Mass (g): 105
- L(mm):56.5
- A(mm):17
- ΦD(mm):26
- ΦB(mm):9.53
- H (mm): Hex 20.64 (13/16)
- T (mm): Hex 17.46 (11/16)
- Valve Structure: Double Road Opening/Closing Type
- Applicable fluids: water, coolant for temperature control
- Body Material: Stainless Steel
- Maximum Working Pressure (MPa{kgf/cm2}): 1.0{10}
- Pressure Capacity (MPa{kgf/cm2}): 1.5{15}
- Type: Socket
