产品详细内容

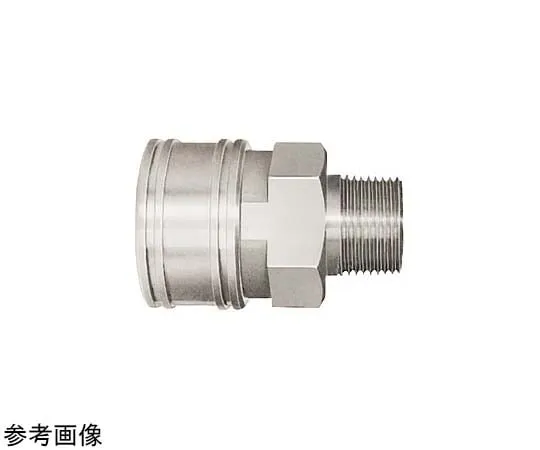

产品型号: 65-9010-05
产品品牌: NITTO KOHKI CO., LTD.
功能
- For medium pressure.
- Since it is a valveless structure, pressure loss is greatly reduced and large flow rate is obtained.
- Suitable for fluids with high viscosity (such as grease).
- Various body materials, sizes and mounting shapes have been standardized to meet a wide range of applications and conditions.
- Compatibility: The socket and plug can be connected regardless of the mounting configuration, as long as the initial letters of the product type are the same.
规格
- Mating Side Mounting Screw Size: Rc1/2
- Body Material: Stainless Steel
- Mass (g): 179
- L(mm):56
- ΦD(mm):35
- H (mm): Hex 29
- T:R1/2
- ΦB(mm):13
- Valve Structure: Double Road Open Type
- Maximum Working Pressure (MPa{kgf/cm2}): 7.5{76}
- Pressure Capacity (MPa{kgf/cm2}): 10.0{102}
- Recommended maximum tightening torque (N · m{kgf · cm}): 60{612}
- Seal Material: Ethylene Propylene Rubber
- display symbols: EPDM
- Operating Temperature Range (°C): -40 to +150
- Remarks: Standard Material
- Mounting Shape: Male Screw
- Type: Socket
