产品详细内容
产品型号: 65-9006-65
产品品牌: NITTO KOHKI CO., LTD.
功能
- For medium pressure.
- Connect multiple pipes simultaneously in one connection operation. Supports multiple pipes of different fluids and sizes.
- Suitable for automated systems that connect and separate multiple pipes simultaneously using oil and pneumatic cylinders.
- Both the socket and plug are equipped with automatic opening and closing valves to prevent fluid from flowing out during separation.
规格
- Mass (g): 121
- L1(mm):53
- L2(mm):14
- L3(mm):24
- ΦD1(mm):28
- ΦD2(mm):21.9
- H (mm): Hex 26
- T(mm):M20×1.5
- Valve Structure: Double Road Opening/Closing Type
- Applicable fluids: air, water, hydraulic fluid
- Body Material: Stainless Steel (Electroless Nickel Phosphorus Plating)
- Maximum Working Pressure (MPa{kgf/cm2}): 7.0{71}
- Pressure Capacity (MPa{kgf/cm2}): 10.0{102}
- Seal Material: Fluororubber
- display symbols: FKM
- Operating Temperature Range (°C): -20 to +180
- Recommended maximum tightening torque (N · m{kgf · cm}): 50{510}
- Type: Plug
- Specifications: Screw Fixed Type
相关产品推荐
您可能还对以下产品感兴趣
![3-9508-21-01 [Cut Product] PVC Duct Hose (EE) 165 x 177.8 mm Length 1 m 21107-165](https://www.hgauge.com/wp-content/uploads/2025/05/45e389435bd7b8b6450c05fe4c35acb5.webp)
连接器/管件/泵阀

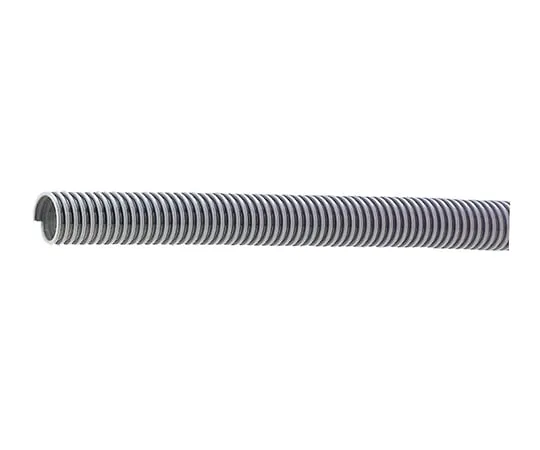

3-9508-21-01 [Cut Product] PVC Duct Hose (EE) 165 x 177.8 mm Length 1 m 21107-165
