产品详细内容
产品型号: 4-5284-01
功能
- RCF-free (alumina fiber) for safe and secure use.
- It is completely covered with the furnace body (insulation material), which prevents the trace components from the heater and the components that once adhered to the heater from adhering to the sample.
- In addition to the 99 step, 99 pattern program operation, there are various operation modes such as auto-start operation, auto-stop operation and repetitive operation.
规格
- External dimensions (mm): 376 x 404 x 515
- Internal dimensions (mm): 100 x 150 x 100
- Capacity (L): 1.5
- Number of pieces: 1
- Operating temperature range: 100 ~ 1150 degrees Celsius
- Temperature distribution accuracy: +/- 4.0 degrees C (at 1150 degrees C)
- Temperature rise time: about 90 minutes
- Control method: P.I.D. control
- Heater capacity: 1.1 kW
- Furnace: Alumina fiber
- Safety devices: Self-diagnostic function (Sensor Abnormal Detection, Heater Disconnection Detection, Triac Short Circuit Detection, Main Relay Failure Detection, Automatic Overtemperature Prevention), key lock function, independent overrise protection, overcurrent leakage breaker, temperature fuse
- Exhaust bore: Inside diameter 20 mm (top)
- Weight: 29 kg
- Power supply: 100 VAC 11.5 A
- Current Capacity *: 15 A
- Power cord length: about 2 m outside the unit
- Accessories: Exhaust cap, temperature fuse, hearth board
- *An exhaust unit (OFP 36, OFP 38) is an option.
相关产品推荐
您可能还对以下产品感兴趣
实验室仪器
实验室仪器

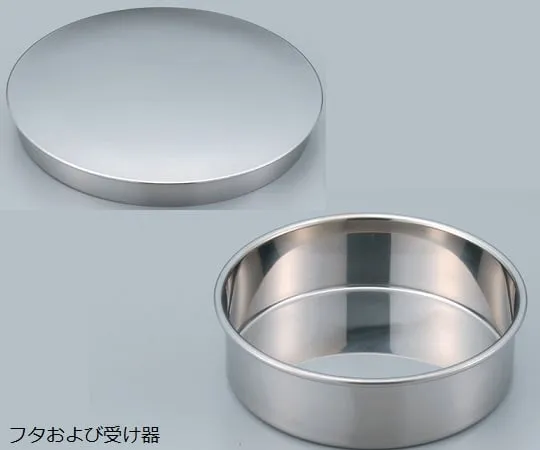

62-2324-37 测试Sieve Lid and Receiver SUS Utility型号φ75 mm深20 mm -
