规格

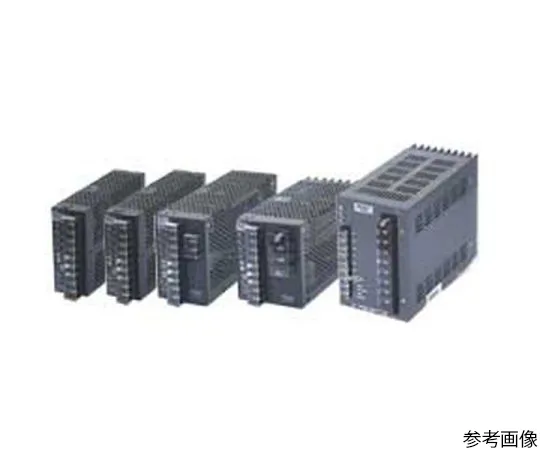

• Output Power: 120 W
• Input voltage range: 85 ~ 132 VAC (47 ~ 440 Hz)/90 ~ 165 VDC (90 ~ 110 VDC: derating 80%)
• Output Voltage: 12 V
• Output Current: 10 A
• Efficiency (typ):
• Operating temperature range: -10: 60%, 0 to + 50: 100%, + 60: 70%, + 71: 50%
• Dimensions: approx. 220 x 97 x 63 mm
• Remarks:
• General-purpose standard power supply for industrial equipment
• Best for uninterruptible devices Both AC and DC inputs
• Input voltage range: 85 ~ 132 VAC/90 ~ 165 VDC
• Wide assortment of 5 models, 48 models, 300 W type is fanless natural air cooling system
• Wide operating ambient temperature: -10 to + 71 degrees C
• Low input/load fluctuation, low output ripple noise
