产品详细内容

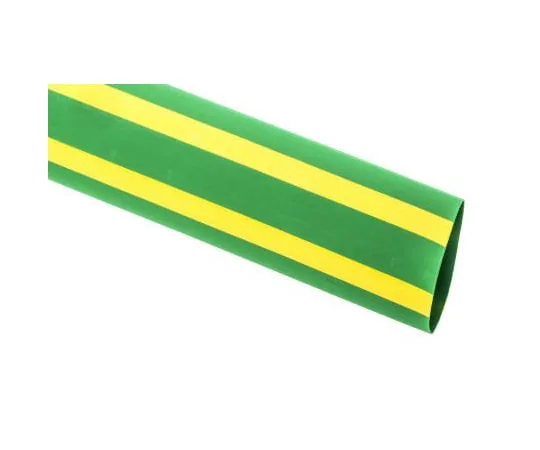

产品型号: 63-4612-06
产品品牌: RS PRO
功能
- MIL SAE-AMS-DTL 23053/5 Class 1 (excluding clear type) IEC 60684-3-212 A; B, BS3G 198 Part 3 11b, VG 95343 Part 5 A; B
- SAE-AMS-DTL-23053/5 Class 2
- Polyolefin Heat-Shrinkable Tube 2:1
- This flexible heat-shrinkable polyolefin tube is ideal for wiring, harness sleeves, identification coloring, insulation, protection, and coating in the electrical, automotive, and aviation industries.
- Features and benefits: Supports a full range of colors, including new phase colors in accordance with BS7671 Shipping length 1.2 m Very flexible Flame retardant (except clear) High mechanical/electrical strength Corrosion resistance and solvent resistance Diameter size listed is the minimum size for shipping shrinkage
规格
- 套筒直径:19.1毫米
- 收缩直径:9.5毫米
- 颜色:绿色
- 袖子类型:热收缩
- 内衬粘合剂:否
- 缩比:2:1
- 袖长:1.2米
- 材质:聚烯烃
- 阻燃剂:是
- 无卤素:无
- 代码号:398-048
