产品详细内容

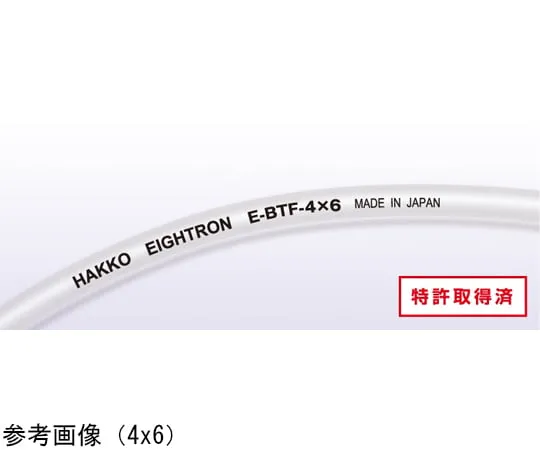

产品型号: 68-1079-89
产品品牌: HAKKO
功能
- Oxygen Barrier: Has about twice the barrier performance of commercially available fluorine tubes, and suppresses the introduction of oxygen into the tubes and the generation of bubbles in the tubes.
- Solvent Barrier: Suppresses volatilization and transmission of solvents to the outside of the tube during solvent transport.
- Plasticizer Free: Uses oil-free material that does not contain plasticizer, which is the cause of eluted substances.
- Low elution: Compared to PVC, there is less eluted material, so it is a clean tube.
- Chemical resistance: The inner layer is made of special fluororesin and is resistant to most chemicals such as organic solvents.
- Green procurement: does not contain or is below the threshold for the 10 substance groups of the RoHS Directive (RoHS2.0), as amended on July 22, 2019.
规格
- Model number: E-BTF-2 x 4
- Inner Diameter x Outer Diameter (mm): 2 x 4
- Working pressure (MPa): 0~1.2 (at 20°C)/0~0.5 (at 60°C)
- Allowable bend radius (mm): 25 (at 20°C)
- Operating temperature range (°C): -20~60
- tones: transparent
- Constant length (m): 100
- Weight (kg/roll): 0.90
相关产品推荐
您可能还对以下产品感兴趣
连接器/管件/泵阀
连接器/管件/泵阀

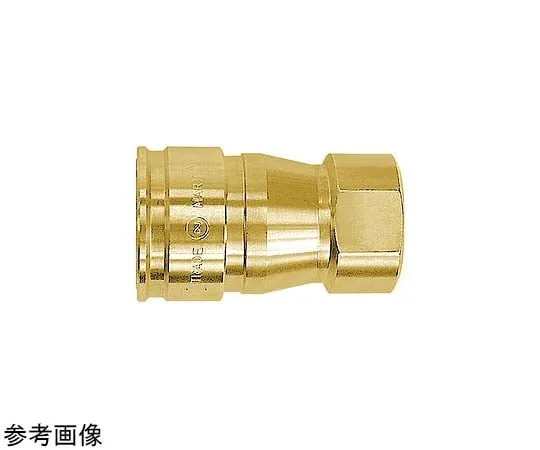

65-9010-44 ［Discontinued］High Flow Coupler R3/8 Brass Socket HFL-3S-BRS-F
型号: 65-9010-44
品牌: NITTO KOHKI CO., LTD.
连接器/管件/泵阀
连接器/管件/泵阀

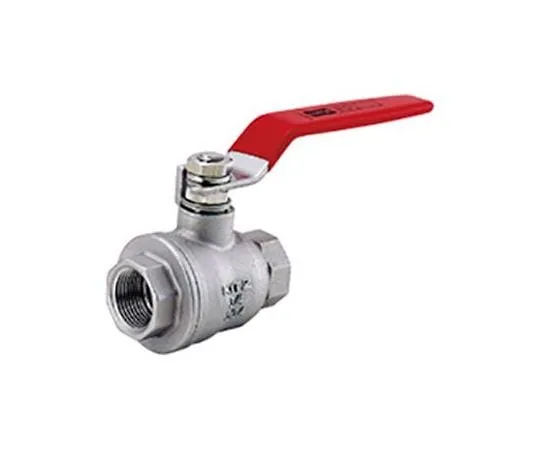

65-1883-82 Ball Valve (UTFZ) Nominal Diameter 10 mm UTFZ10A
