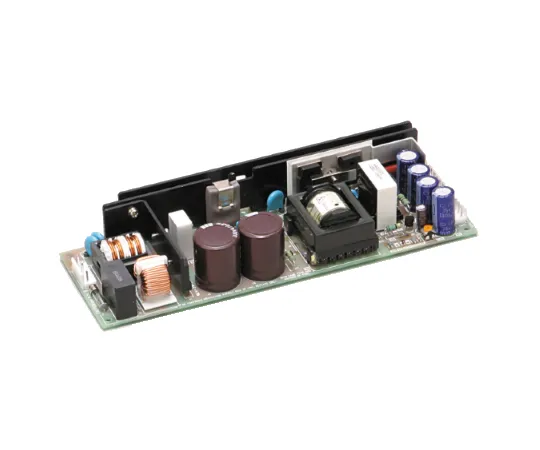

规格

• Compatible brackets: D -28 x 2
• Input: Single-phase
• Input voltage range [AC]: 85 ~ 132 Vac
• Input voltage range [DC]: 110 ~ 175 Vdc
• Efficiency: 86% Typ.
• Rated output voltage (DC): 24 Vdc
• Output voltage range [DC]: 21.6 ~ 26.4 Vdc
• Maximum average current: 6.3 A
• Maximum peak current: 12 A
• Maximum average power: 151.2 W
• Maximum peak power: 288 W
• Shape/Mounting: Open frame (board)
• Size: width (W) 75 mm x height (H) 33 mm x depth (D) 222 mm
• Mass: 480 g
• Operating temperature range: - 10 ~ 50 deg.
• Cooling system: Natural air cooling
• Safety Standard (Certification): CSA C 22.2 No. 60950 -1/EN 60950 -1/UL 60950 -1
• Safety standards (compliance): Electrical Appliances and Materials Safety Act
