规格

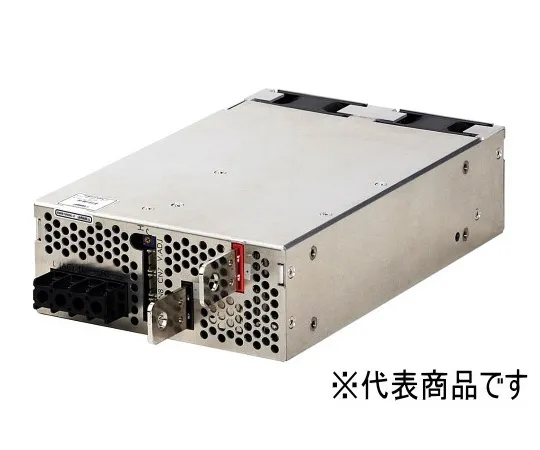

• Output Power: 1056 W
• Input voltage range: AC 85 ~ 265 or DC 120 ~ 330
• Output Voltage: 48 VDC
• Output Current: 22 A
• Efficiency (typ): 84/86% (115/230 VAC)
• Operating temperature range: -20 to + 74 (-20 to + 50: 100%, + 74: 50%)
• Dimensions: 150 x 61 x 240 (mm)
• Remarks: Low profile
• Variable-speed fan circuit ensures quietness
• Medical Standard (IEC 60601) Certification (HWS 1000 L only)
• Wide operating ambient temperature and excellent ambient derating
