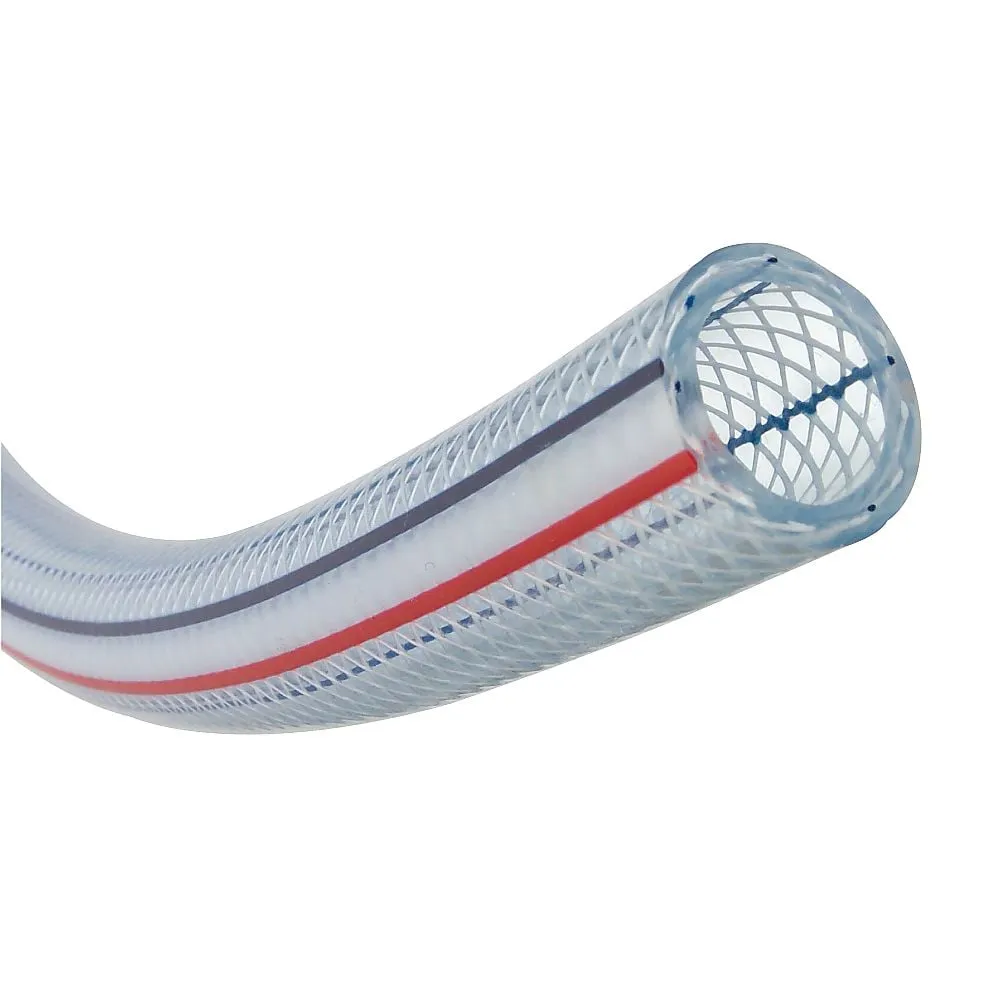

65-0843-69 工厂设备管道和各种机械管道的东洋软管 TR-10-1
连接器/管件/泵阀

65-0843-69 工厂设备管道和各种机械管道的东洋软管 TR-10-1

型号: 65-0843-69
品牌: TOYOX CO., LTD.

产品描述

产品型号: 65-0843-69产品品牌: TOYOX CO., LTD. 功能 Main Applicati […]

联系我们

咨询热线

18866622123

微信咨询

微信号: AHY97319570

微信二维码

产品详细内容

产品型号: 65-0843-69
产品品牌: TOYOX CO., LTD.

功能

  • Main Application: Industrial Piping and Mechanical Piping Pressure Feed • Multi-Purpose Resin Hose: Pressure Resistant Blade Hose that can be d for pressure feed of various fluids such as water, oil, chemicals, and air • Durability: The inner surface of the hose is excellent in oil resistance, does not harden and has a long life • Flexibility: Soft and easy to pipe • Plenty of Sizes: Pressure Resistant Blade Hose for Pressure Feed with a wide variety of sizes (inner diameter 4~75 mm) • Transparency: Highly transparent and allows checking of internal fluids • Compliance with RoHS2 (as of October 2021)

规格

  • 内径x外径 (mm) :10 x 16
  • 压力 (Mpa) :0~1.2 (23°C) ,0~1.0 (60°C)
  • 工作温度范围:-5至60°C
  • 长度:1米
  • 材质:本体/软质氯乙烯、增强材质/聚酯纱线
  • 小弯曲半径:45 mm

相关产品推荐

您可能还对以下产品感兴趣

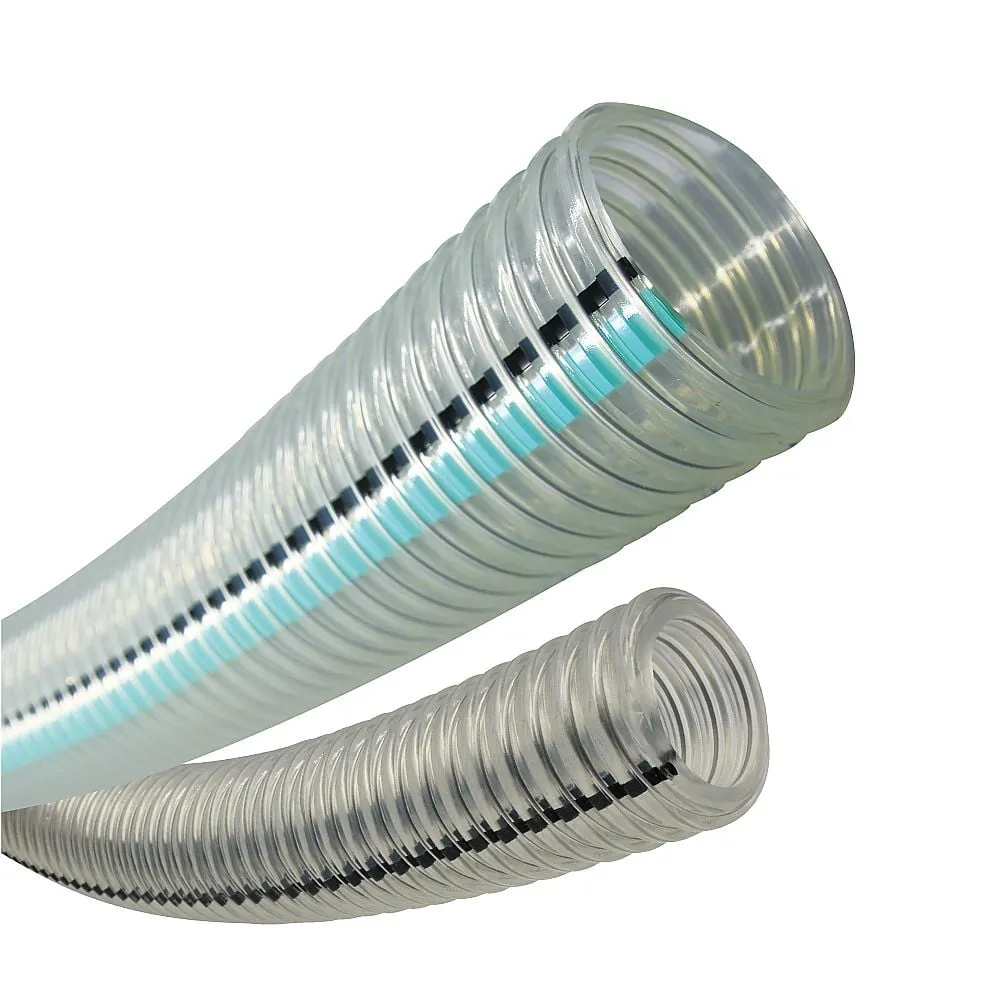

65-0868-40 抗静电,食品粉粒运输用地软管 TFE-32-1
