产品详细内容
产品型号: 63-4566-18
产品品牌: TE Connectivity
功能

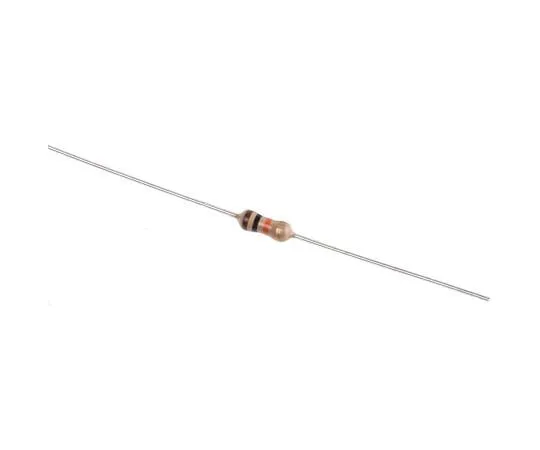

- The 0.33 W-CFR 25 series and the Axial
- CFR series are very high quality carbon film resistors that a ceramic core with a high alumina content. It has a high power output relative to its size, and is by far the most popular carbon-coated product.
- Supports 5 types of rated power from 1 Ω to 10 MΩ.
- Smallest case size (CFR16) with a maximum power rating of 0.25 W
- These components offer low cost and high reliability, ideal for most types of circuitry, audio, communications, metering and computer applications
规格
- Quantity: 1 bag (10 pieces)
- Resistance: 10 kohms
- Rated power: 0.33 W
- Tolerance: +/- 5%
- Technology: Carbon film
- Series: CFR 25
- Temperature factor: -1200 -- > 0 ppm/C
- End style: Axial
- Dimensions: 2.5 (Dia.) x 6.8 mm
- Length: 6.8 mm
- Diameter: 2.5 mm
- Maximum operating temperature: + 155 deg.
- RoHS compliance status: Compliance
- Securities Code: 131 -378
