产品详细内容
产品型号: 2-1340-01-56
产品品牌: Sato Keiryoki Mfg. Co., Ltd.
功能
- All the metal parts on the outer surface are made of SUS304, which is a robust industrial thermometer. The shape is S type (vertical)
- Since it s bimetal expansion, it is an eco-friendly product without power supply.
- When you place an order, please specify a range that is comfortable for the temperature to be d. (Example When using 100°C, specify 0~150°C.)
- * Be sure to a protective pipe (optional) in the following cases.
- * When the material to be measured is high pressure (5 kg/cm or more) or corrosive (However, the material SUS304 may not be considered suitable for corrosion resistance due to the environment).
规格
- Measuring range: 0 ~ 100 degrees C
- Size under screw: phi 8 x 50 mm
- Weight: 260 g
- Minimum scale: 2 degrees
- Material: Stainless steel (SUS 304)
- Mounting screws: R (PT) 1/2
- Case outer diameter: phi 90 mm
- Stencil case
- Code: 2010 -30
- Calibration points are 2 points: 23 degrees Celsius and 80 degrees Celsius (no judgment). If you would like additional points, please contact us separately.
相关产品推荐
您可能还对以下产品感兴趣
理化检测
67-4837-65 HNT General Pressure Gauge AT3/8-75:2.5MPA 0354-02-0015172
型号: 67-4837-65
品牌: Daiichi Keiki Mfg
理化检测
65-4281-65-20 Normal Pressure Gauge (Φ100) Embedded D Frame (Mounting Hole) with 0.1 MPa Inspection Certificate for Vibration Resistance AE15-231
型号: 65-4281-65-20
品牌: NAGANO KEIKI Co., Ltd.
理化检测
61-9628-38 ［已停用］数字体重秤 (未测试) 350 x 500 mm 32 kg (刻度间隔5 g) DP-6301IIN-32 DP-6301IIN-32
型号: 61-9628-38
品牌: YAMATO-SCALE Co., Ltd.
理化检测

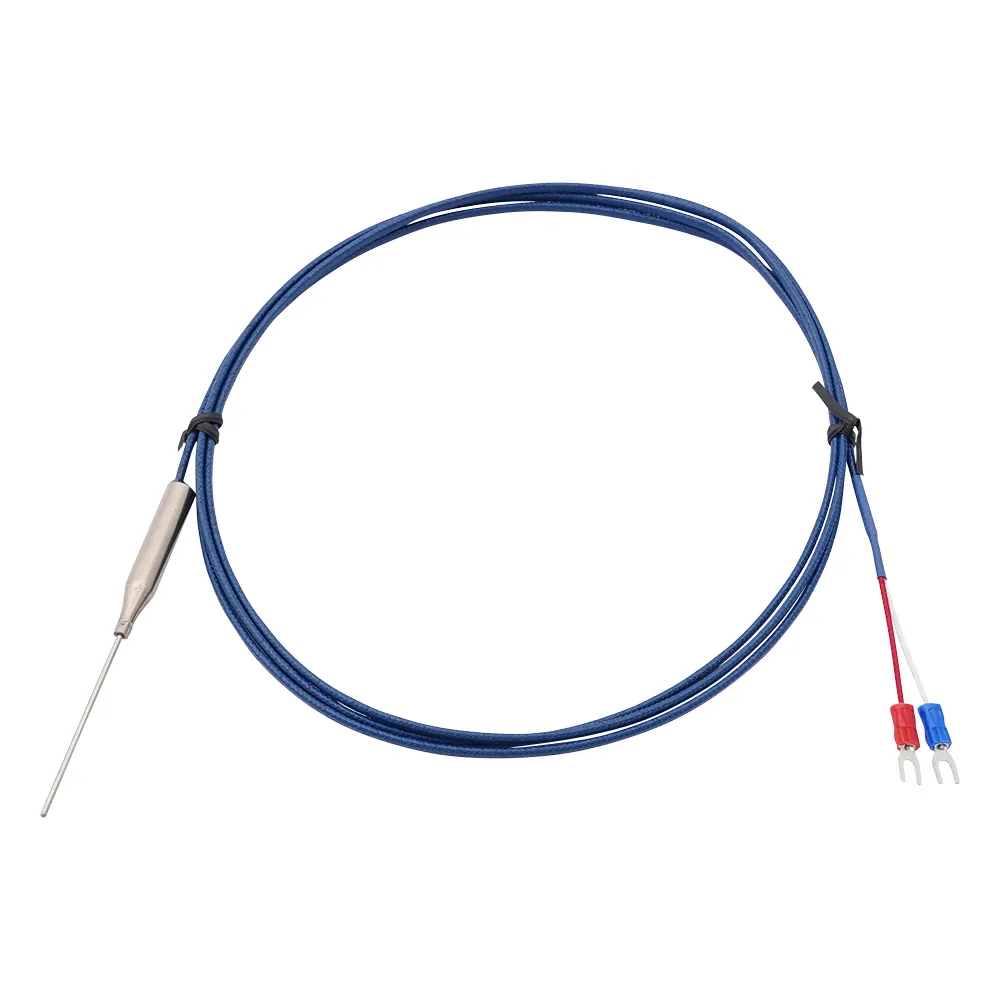

3-7418-01-56 K Thermocouple (sheath) with English Calibration Certificate KTO-1650M3
