产品详细内容
产品型号: 64-3826-64
产品品牌: Yoshitake Inc.
功能

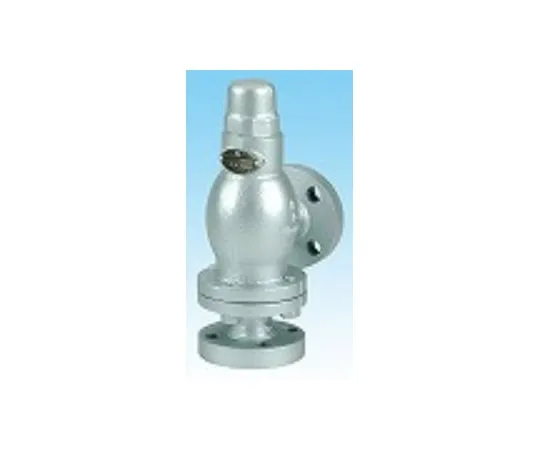

- The AL-280 type relief valve is a dedicated pump relief valve for pressure control of pumps with large pulsating and fluctuating pressures.
- The structure of the valve body and the valve seat is such that it is continuously discharged against the pressure change of the fluid without popping operation.
- Stainless steel with good corrosion resistance is d for the adjustment spring.
规格
- 类型:AL -280
- 结构:密封
- 适用流体:冷水、油(重油A,重油B,煤油)
- 适用压力范围:0.05到1.0 MPa
- 适用温度范围:5~120°C
- 连接:JIS 10 KFF法兰
- 标称直径:在型号后面列出
- 弹簧箱:球墨铸铁
- 阀体:不锈钢
- 阀座:不锈钢
- 调整弹簧:不锈钢
- 垫片:非辅助垫片
