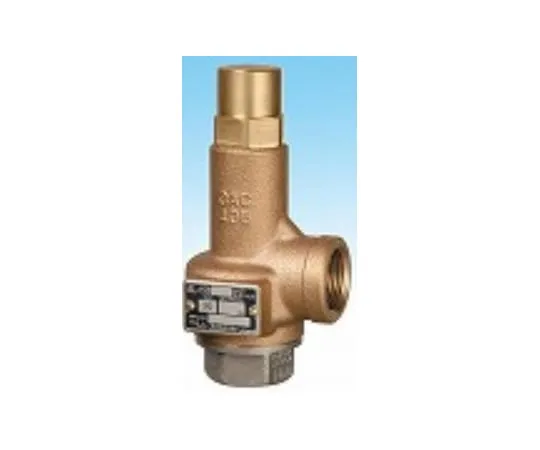

64-3810-77 提升高度安全阀密封型,螺纹25 A 1 B 0.10 MPa SET AL-150-25AX0.1MPA
连接器/管件/泵阀

64-3810-77 提升高度安全阀密封型,螺纹25 A 1 B 0.10 MPa SET AL-150-25AX0.1MPA

型号: 64-3810-77
品牌: Yoshitake Inc.

产品描述

产品型号: 64-3810-77产品品牌: Yoshitake Inc. 功能 It is a univers […]

联系我们

咨询热线

18866622123

微信咨询

微信号: AHY97319570

微信二维码

产品详细内容

产品型号: 64-3810-77
产品品牌: Yoshitake Inc.

功能

  • It is a universal type that can handle fluids such as steam, air, water and oil. The pressure division was subdivided to achieve a precision finish using advanced technology to pursue the best performance. Advanced technology, high-grade materials, and a simple mechanism make maintenance and inspection easy, as well as incredibly durable. Due to the sealed structure, no fluid leaks to the outside.

规格

  • 大小 (A) :25 A
  • 大小 (B) :1B
  • 0.10 MPSET
  • 适用流体:蒸汽、空气、冷热水、油、其他非危险流体
  • 主体材料:CAC
  • 连接:JISRc
  • 阀座:SCS
  • 适用压力范围:0.05 -1.0 MPa
  • 高温度:220°C (液体为150°C)
