功能

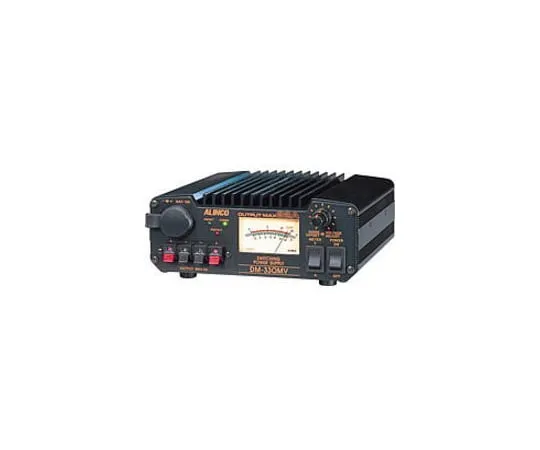

• Stabilizing power supply for radio equipment such as amateur radio. By adopting the switching system, we have achieved a stable supply of 30 A continuously while reducing the size and weight. Noise can be avoided by the noise offset function, and various protection circuits protect connected devices. Other features include a fixed voltage preset function, various output terminals as standard, and a large, easy-to-read voltage/current meter.
• Main Specifications
• Power supply voltage 100 VAC
• Output Voltage: 5~15 VDC (Variable) 13.8 VWith Center Click
• Intermittent Maximum Output (at 13.8 V) 32 A
• Continuous Maximum Output (at 13.8 V) 30 A
• protection circuit drooping characteristic automatic current limiting system
• Protection circuit operating point 32 A or more
• Used F 10 A
• Output System Screw Type Terminal/1 System (35 A)/Cigar Liter Socket/1 System (10 A)/One Touch Push Terminal/2 Systems (6 A)
• Meter A/V switching type
• Fan temperature control type fan
• Dimensions (W x H x D) 175 x 67 x 165 mm
• Weight 2 kg
• Range of Use Radio/Output up to 100 W/Power Booster/Output up to 200 W
