产品详细内容

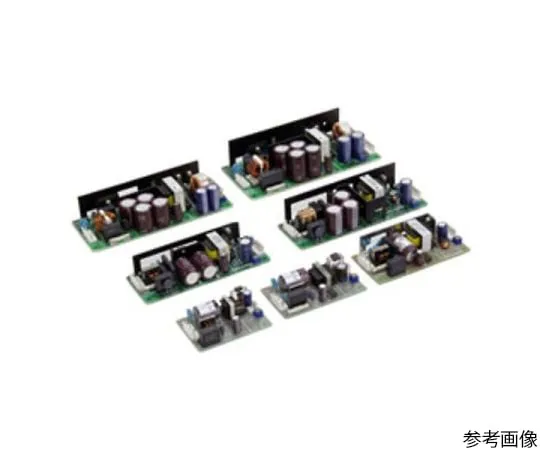

产品型号: 64-5675-15
产品品牌: TDK-Lambda Corporation
功能
- Features
- Simple circuit configuration without harmonic current suppression circuit
- Compact, lightweight, high efficiency
- Significantly reduced input power to 0.2 W (typ) at no load (ZWS10B, ZWS15B, ZWS30B)
- Achieves 100% load factor at 50 ° operating ambient temperature (standard installation)
- Extensive lineup of options (With Cover, L Sheet Metal, Coated on Both Sides of Substrate, Volumeless)
规格
- Output Power: 15 W
- Input voltage range: 85 ~ 265 VAC (47 ~ 63 Hz) or 120 ~ 370 VDC
- Output Voltage: 5V
- Output Current: 3.0 A
- Efficiency (typ): 0.76/0.78 (100/200 VAC)
- Operating temperature range (deg. C): -10 to + 70 (-10 to + 50: 100%, + 60: 70%, + 70: 40%)
- Dimensions (mm): 50 x 22 x 87.5
- Remarks: No cover
- RoHS compliant
相关产品推荐
您可能还对以下产品感兴趣
电子部品

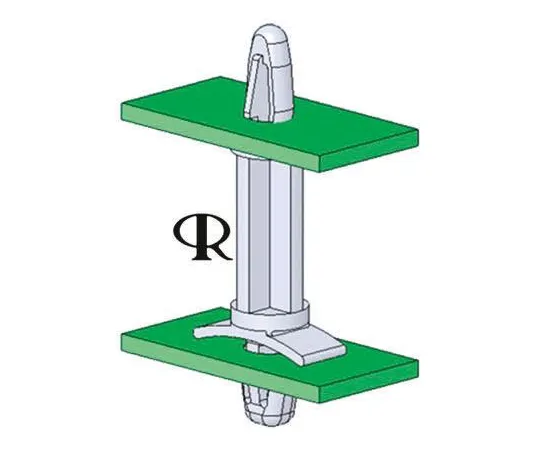

63-5021-21 LCBSM-7-01,11.1毫米高尼龙锁定PCB支撑柱与3.18毫米PCB孔和3.18毫米机箱孔 LCBSM-7-01
型号: 63-5021-21
品牌: Richco
电子部品

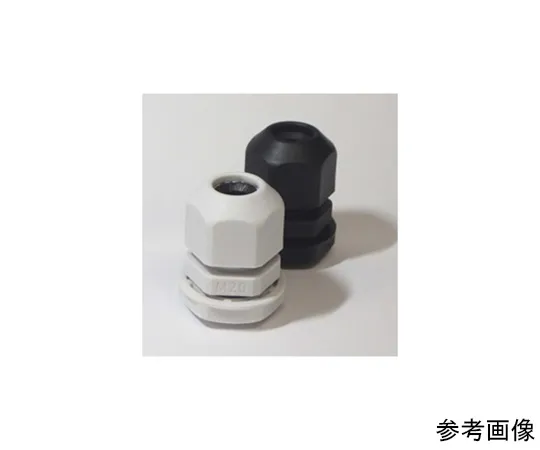

3-995-20 M螺丝缆锁 (RM型) 浅灰色100个 RM10L-6S-P
型号: 3-995-20
品牌: TAKACHI ELECTRONICS ENCLOSURE Co., Ltd.
电子部品
电子部品

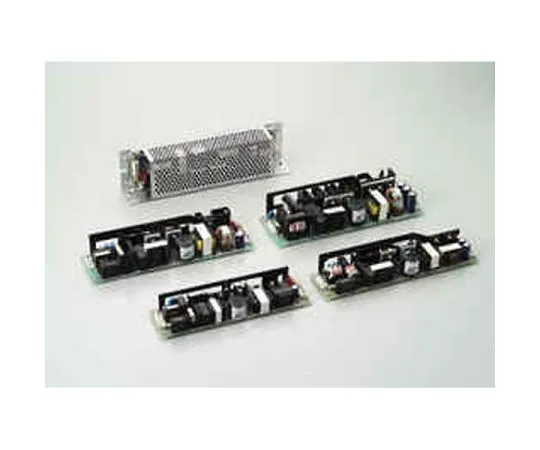

64-5675-53 Single Output Board-Type Power Supply ZWS-B Series ZWS50BAF-5A
