63-4151-07 FEP Heat Shrink Tube 1.5F 1000L EIT-1.5F-1000
连接器/管件/泵阀

63-4151-07 FEP Heat Shrink Tube 1.5F 1000L EIT-1.5F-1000

型号: 63-4151-07
品牌: GUNZE LIMITED

产品描述

产品型号: 63-4151-07产品品牌: GUNZE LIMITED 功能 Ideal for electr […]

联系我们

咨询热线

18866622123

微信咨询

微信号: AHY97319570

微信二维码

产品详细内容

产品型号: 63-4151-07
产品品牌: GUNZE LIMITED

功能

  • Ideal for electrical insulation applications. Fluororesin small diameter heat shrink tube with excellent mold release.
  • Excellent insulation, heat resistance, chemical resistance and mold release. In addition to insulation applications, fluoropolymer can be added to various fields such as coating on very small diameter rolls.
  • Please consult with φ1 or smaller, very fine diameter, long, thick, colored, high shrinkage type.
  • [Precautions]
  • Store in a cool dark place (30°C or less) to maintain the inner diameter before shrinkage.
  • The internal diameter after shrinkage is measured after heating at 200°C for 10 minutes, and is not a guarantee value.

规格

  • Material: Fluororesin (FEP)
  • Inner diameter before contraction (mm): phi 1.9
  • Inner diameter after contraction (mm): phi 1.3
  • Thickness (mm): 0.2
  • Length (m): 1
  • Code: NR0502-001

相关产品推荐

您可能还对以下产品感兴趣

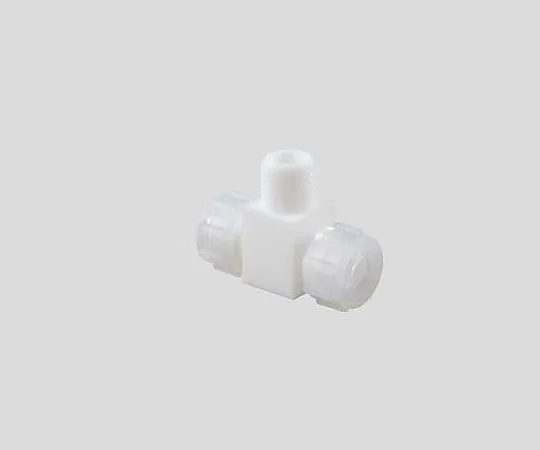

2-772-02 [已停用]半接头T-1型R1/4 AF-HJT18
