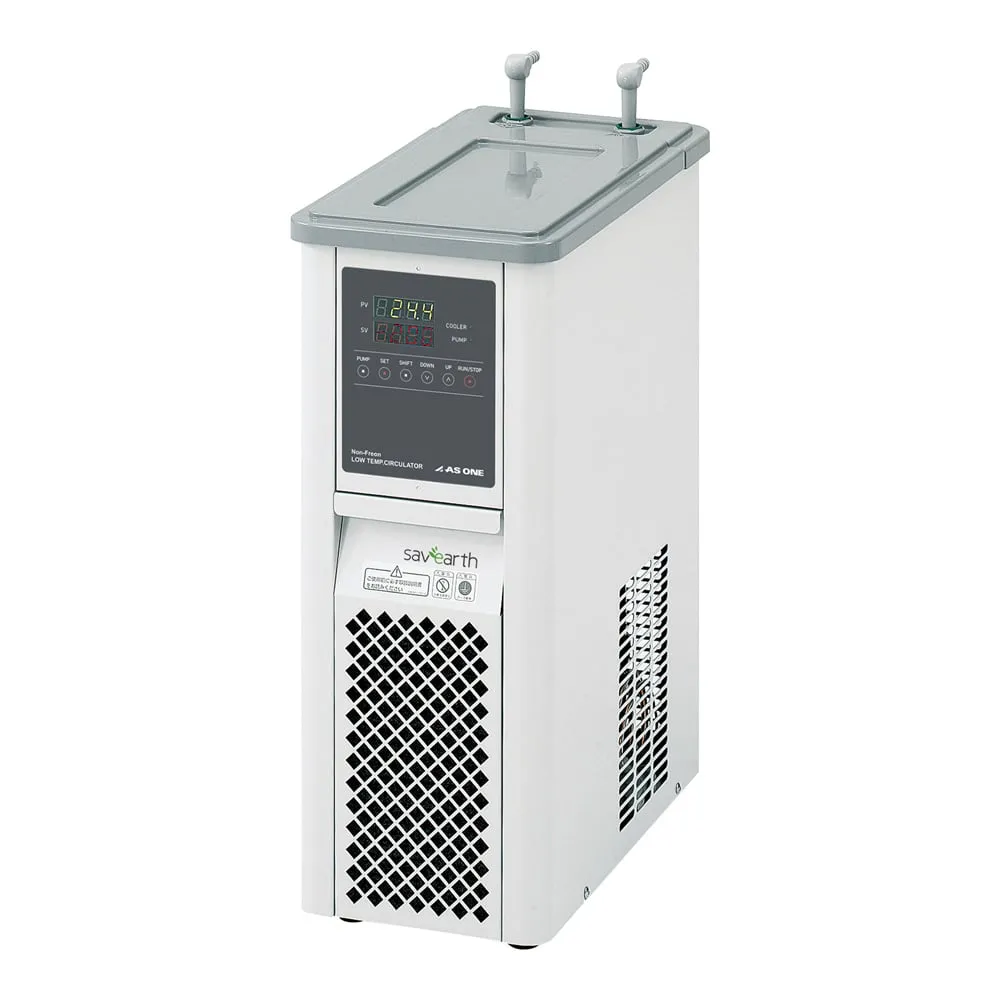

规格

• Temperature range (°C): -10 to +30
• Temperature Adjustment Accuracy ±2.0°C(Room Temperature 20°C/Maximum Circulation Volume/Power Supply 100 VAC 50/60Hz/Setting 5~30°C/At No Load)
• Circulation system: Closed system counter circulation
• Type of solution d: fresh water, pure water, ethylene glycol, etc.
• External Circulation Capacity (50/60Hz): Maximum Flow 12/12L/min, Maximum Pump Head 5.4/6.6 m (When a Single Pump Is Used)
• Cooling capacity (at10): 50 Hz/320 W
• Circulation Nozzle Outer Diameter: φ 11 mm (Applicable Tube Inner Diameter φ 9 mm)
• Liquid Tank: φ160 x H160mm Approx. 3 L
• Coolant: R1234yf
• Size: 218 x 430 x 563 mm
• Power: 100 VAC 50/60Hz
• Timer: 1 minute to 47 hours 59 minutes (1 minute increments)
• Self-Diagnosis Function: Upper/Lower Temperature Abnormality Detection, Sensor Abnormality, Chiller Overload Relay, Chiller Protection Timer, Power Failure Detection, Control Temperature Abnormality, Memory Error
• External Input/Output: External Temperature Sensor Input Terminal, Analog Output Terminal for Thermometer (1 ~5 VDC) Alarm Output Terminal (12 VDC ~17 VDC)
• Weight: Approx. 27 kg
